Speed
High-speed output of up to 70 plates per hour

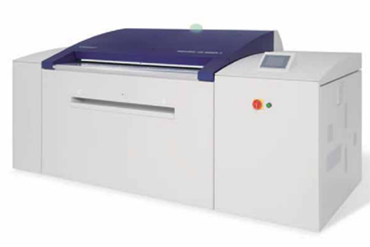

The high-end PlateRite HD 8900N-Z features a 1,024-channel imaging head that utilizes GLV™ technology. This enables output of more than 65 plates per hour,*1 allowing a single PlateRite HD 8900N-Z to replace multiple CtP recorders in an existing line. Processing is easier to manage and running costs and liquid waste are lower than ever.
The PlateRite HD 8900N-Z delivers the almost instantaneous response required for today’s small lots and ultra-short deadlines, providing a new level of added value for clients. The S and E models also feature a 512-channel imaging head,with respective throughput of up to 48 and 36 plates per hour.
*1 At 2,400 dpi, with 1,030 x 800 mm (40.5" x 31.5") plates.
Variety of plate sizes for different presses
The PlateRite HD 8900N series supports plates ranging from 304 x 305 mm (12.0" x 12.1") to 1,165 x 950 mm (45.8" x 37.4"). Compatibility with 6-mm leading and tailing edge clamps also enables output from a wider variety of presses. Simplified plate setting further improves operating ratios, boosting the productivity delivered by the series' high-speed output.
Quality
Creation of sharper halftone dots with the latest technology
In addition to its GLV-equipped imaging head, the PlateRite HD8900N series uses screening options ranging from Screen’s unique Spekta and Spekta 2 AM/FM hybrid screening through to high-end AM and FM screening. The result is superior image quality suitable for a variety of applications at a standard 2,400 dpi resolution. Imaging quality is also more reliable thanks to an auto-focus function.
High-resolution output of 4,000 dpi
The S and E models offer a 4,000 dpi high-resolution option* that uses ultra-precise AM halftone dots. This option supports the creation of plates for extremely detailed output, including high resolution art printing and accurate reproduction of the small text sizes required for bond and other certificate printing.
* Available as an option for the S and E models.
* Under development.
Compatibility with lenticular output mode
Lenticular output mode*, which performs step exposure ideal for lenticular production, will soon be available as an option. This mode eliminates the interference moire seen with lenticular lenses and is optimal for the imaging of high-precision straight lines, such as those in bar codes. Installation of the 4,000 dpi option also enables the output of high-resolution plates for 3D lenticular printing.
* Available as an option for the S and E models.
* Under development.
Automation Autoloader maximizes productivity
An autoloader system can be installed to automate the entire plate-making process, from plate loading through imaging and transport to developing. The autoloader enables extended periods of continuous operation and significantly increases both productivity and press operating ratios.
Loading of plates during processing
The MA-L8900 allows plates to be loaded into the cassette during continuous operation. This avoids downtime when additional plates are required and maximises productivity and press operating ratios.

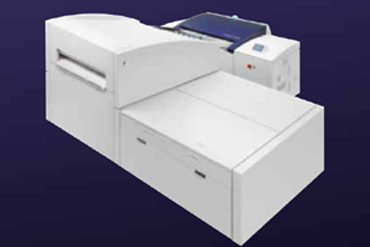

MA-L8900 multi-cassette autoloader
The MA-L8900 comes standard with three plate cassettes (up to five as an option) and full automation of both plate supply and cassette switching. Each cassette holds up to 100 plates*, for a maximum of 500 plates stored in the autoloader. Even if different plate sizes are loaded into separate cassettes, the autoloader flexibly switches between the cassettes as required. Loading all cassettes with the same plate size enables extended periods of continuous operation.
* For 0.3mm plates
SA-L8900 single-cassette autoloader
The SA-L8900 features a single cassette that holds up to 100 plates* as well as automatic detection and removal of interleaf paper. Its transport system only contacts the rear side of a plate, preventing damage to the sensitive emulsion side. Manual loading is also possible, giving operators the flexibility to select plate sizes as required.
* For 0.3mm plates
Remote status checking at any time

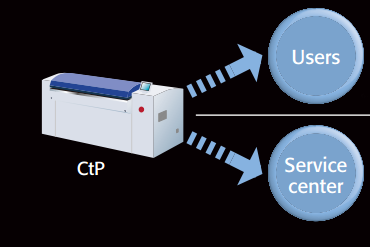

Remote monitoring system
CtP operating conditions and output history can easily be checked from a remote location via Web browser or e-mail. E-mails can also be automatically forwarded to a service centre and entered into a database for use in maintenance, repairs, and periodic inspections. This ensures the recorder remains in optimal condition at all times (support contract required).
Remote control system*
An external PC can effectively be used as a substitute operation panel, allowing users at remote locations to make CtP settings and send commands. This gives operators greater flexibility and also allows technicians at remote service centres to perform maintenance.
* Under development.
Ecology Gentle on the environment
Screen assesses the environmental impact of all its products as a form of design review. The PlateRite HD 8900N series has been developed with the goals of minimising energy use and environmental impact while maximising safety.
Energy use during operation has been cut by up to 43%.*
A new power-saving mode allows energy savings of around 88%* during idling.
* As power consumption levels are also affected by the operating environment and other external factors, the above values cannot be guaranteed.
